Paper Bag Bottom Gluing Machine

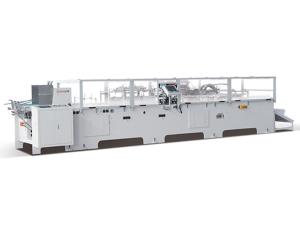

The ZB50B-2 paper bag bottom gluing machine lasts all the advantages of the ZB50B type. In addition, it is designed with an automatic feeder which can completely get rid of the dependency on operator's proficiency. Using this type of paper bag gluing machine, you will obtain the best efficiency and the most profitable reward.

The paper bag paste machine features touch screen operation and optical fiber control. It comes with one gluer with four gluing hose and four spray guns. The spray guns can achieve separate control to gluing volume and length, and simultaneous operation as well. Additionally, hot melt glue is used to keep fast operation.

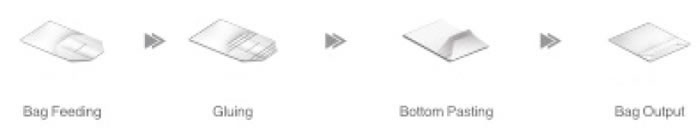

This paper bag bottom gluing machine can ensure uniform gluing, high precision, fast speed, and wide application. With regard to the gluing process, the folded paper bags are firstly put in the feeder. Then, a servo motor driven device will stably deliver the bags to the front and side guides for positioning. Afterwards, such processes as bottom unfolding, gluing, bottom sealing, compacting and bag output will be completed at one stroke.

Technological Process
