Characteristics
1. The ZB60 paper bag bottom gluing machine with our dedicate design has completely changed the traditional paper bag bottom gluing process which relies heavily on operators' experience.
2. This paper bag manufacture equipment comes with special bottom-unsealed bags feeding device. To illustrate, by means of vacuum absorption method, the stacked paper bags will be fed one by one from the bottom up.
3. After being positioned, the fed paper bags will accept bottom gluing process. With optimized gluing process and environment friendly water soluble cold glue, this brown paper bag pasting machine is capable of resolving the problems of adhesive failure and glue leaking.
4. The paper bag bottom gluing machine is designed with an automatic compacting unit to press the paper bags when their bottom has been glued. After compacted, the paper bags will be output in layering pattern.
5. Thanks to the usage of variable frequency motor, this paper bag production equipment can adjust gluing thickness and position according to various requirements.
6. This shopping bag machine features overall output and quality control, ensuring great uniformity, high productivity and high added value. In addition, it boasts high precision, fast speed, easy operation, and short delivery time, etc.
| Bag length | 200-600mm |
| Bag width | 200-450mm |
| Bottom width | 60-180mm |
| Total power | 3kw |
| Machine dimensions (L×W×H) | 8140×1600×1380mm |
| Production speed | 100pcs/min |
| Total weight | 2T |
| Glue type | Water soluble cold glue |

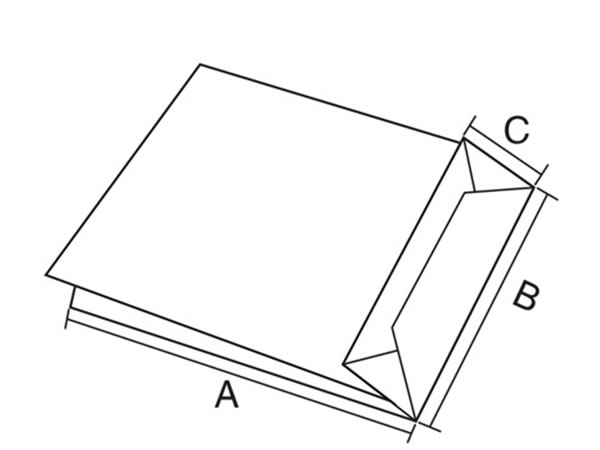

| A | B | C | |
| Max. Size（mm） | 600 | 450 | 180 |
| Min. Size（mm） | 200 | 200 | 60 |
Suitable paper: Kraft paper, art paper, white board paper, white cardboard （including film adhesive paper）
